BrandLenovo
ModelLegion Pro 5 16AFR10 (83F2000STA)
ProcessorAMD Ryzen 9 9955HX (2.5GHz up to 5.4GHz, 16C / 32T, 16MB L2 Cache / 64MB L3 Cache)
ChipsetAMD SoC Platform
CPU SeriesRyzen 9
AI EngineN/A
GraphicsNVIDIA GeForce RTX 5070 (8GB GDDR7)

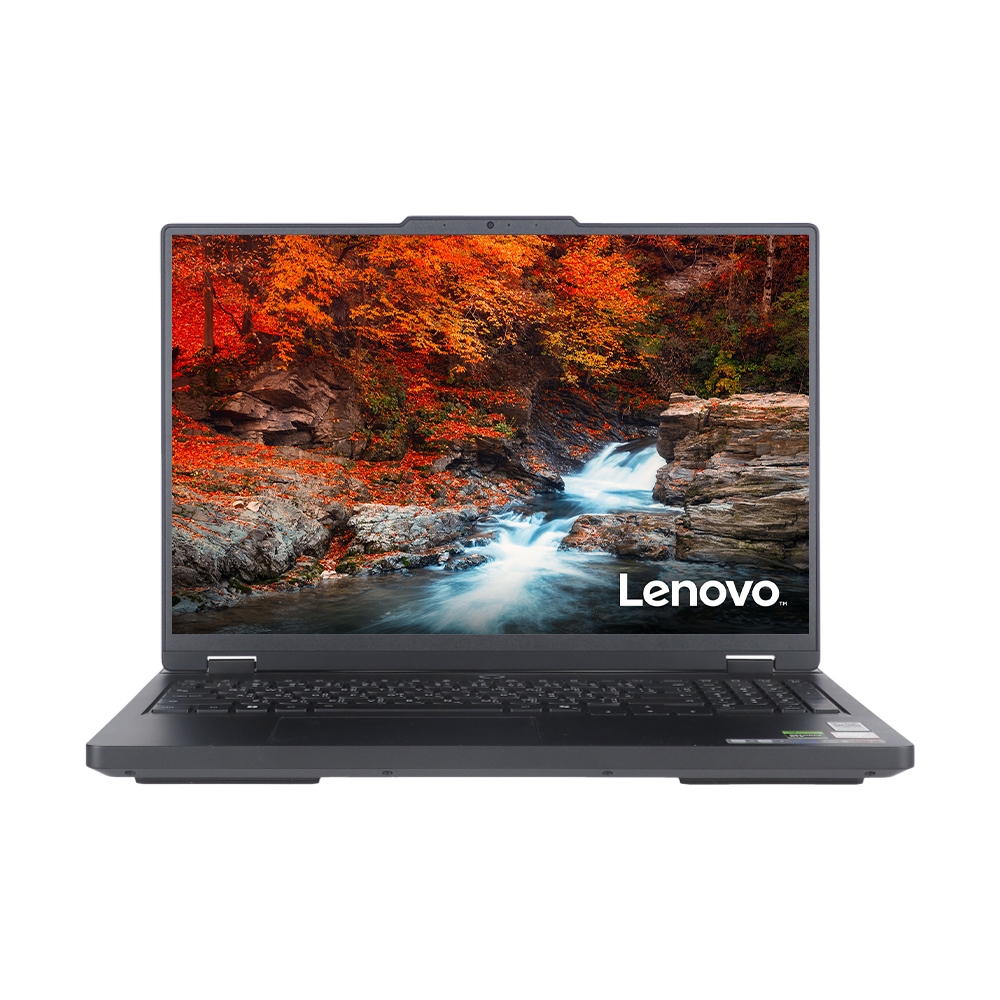

Display Screen16.0" 2560x1600 (WQXGA) 16:10, OLED 1100nits (peak) / 500nits (typical) Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance
Main Memory32GB (2x 16GB) DDR5-5600 SO-DIMM
Memory Slot2x DDR5 SO-DIMM slots, dual-channel capable
Max MemoryUp to 32GB DDR5-5600 offering
Storage1TB SSD M.2 2242 PCIe 4.0x4 NVMe
Storage Slot2x M.2 2280 PCIe® 4.0 x4 slots
Optical Disk DriveNone
Web Camera• 5.0MP with E-shutter • 2x, Array Microphone
Sound TechnologyHigh Definition (HD) Audio, Realtek® ALC3306 codec
Audio Jack1x Headphone / microphone combo jack (3.5mm)
SpeakerStereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
OSWindows 11 Home
Special FeatureAI Chip: LA3
Network10/100/1000 LAN
WirelessWireless 802.11be (Wi-Fi 7)
BluetoothBluetooth 5.4
Ports2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with DisplayPort™ 2.1 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1* 1x HDMI® 2.1, up to 8K/60Hz *Supports Lenovo protocol for 140W charging but requires a unique Lenovo adapter for operation.
CardReaderNone
BatteryIntegrated 80Wh

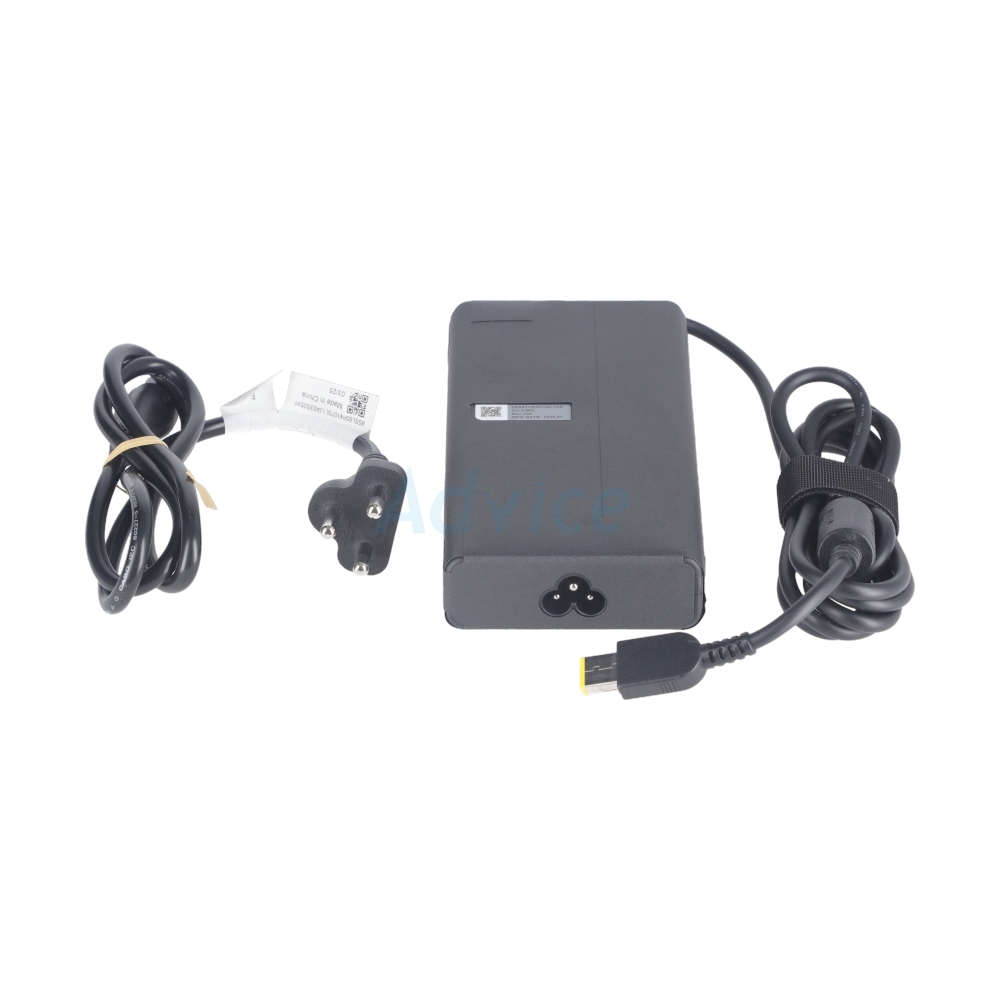

Power Adapter245W Slim Tip (3-pin)

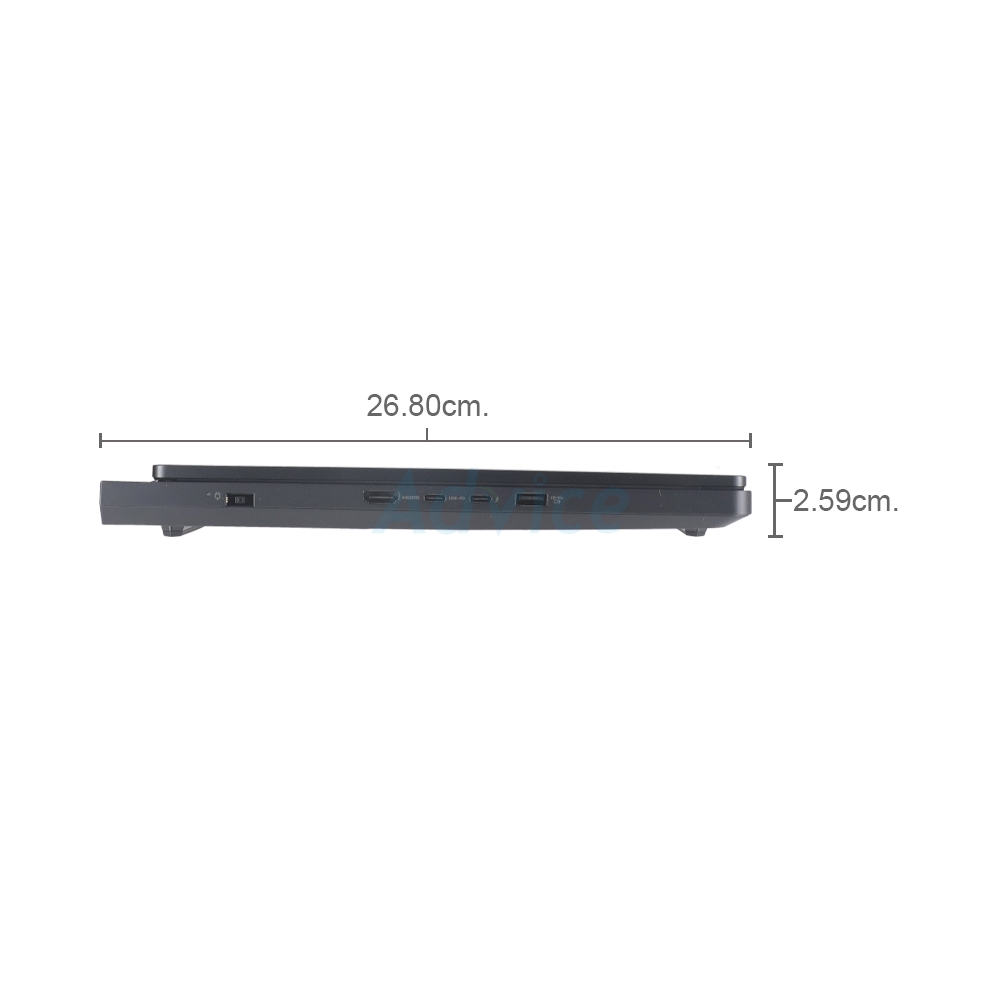

Dimension (cm)(W x L x H) : 36.43 x 26.80 x 2.59 cm
Net Weight (kg)2.30 kg
Package Dimension (cm)(W x L x H) : 8.00 x 54.00 x 34.00 cm
Gross Weight (kg)3.64 kg
Volume (cm³)14,688.00 cm³
MaterialAluminium (Top), PC-ABS (Bottom)

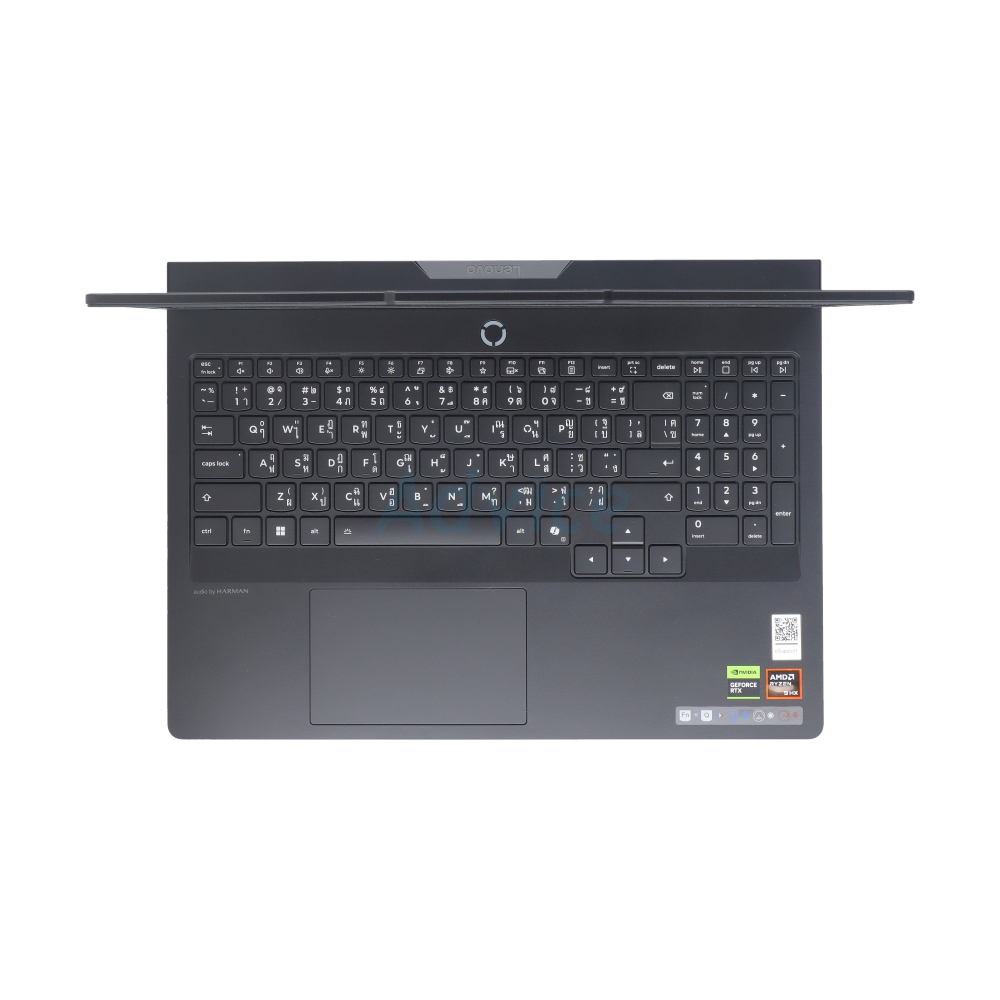

Keyboard TypeENG/TH, 6-row, multimedia Fn keys, numeric keypad, key travel 1.6mm, cap recess 0.3mm, Copilot key
Backlit24-Zone RGB backlight
TouchpadButtonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP)
Finger PrintNone
warranty4-4-4
